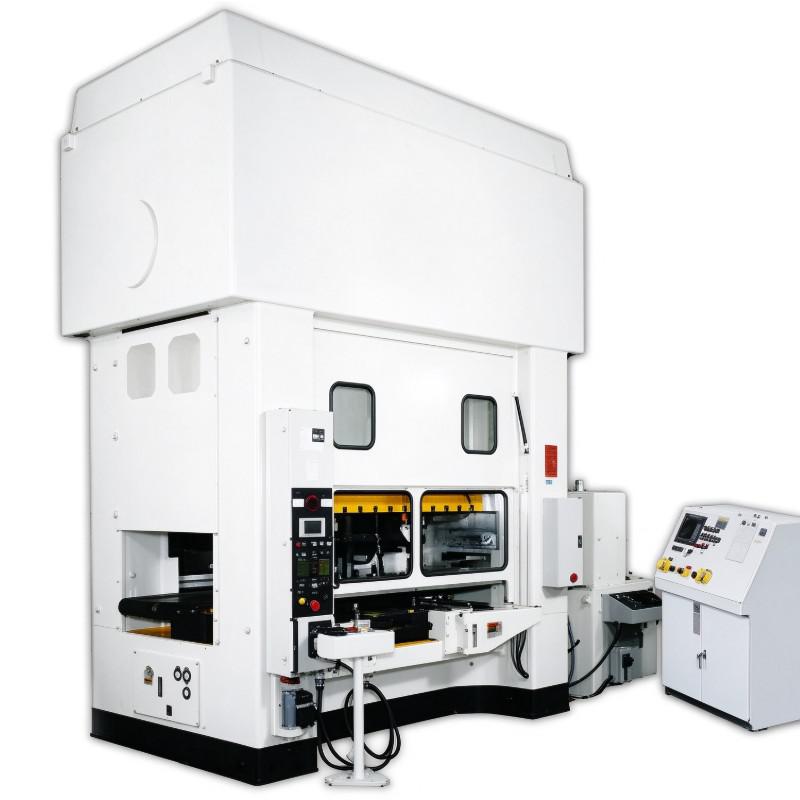

Cam Driven Transfer Press
Cam Driven Transfer Press

Cam Driven Transfer Press

The press slide is cam driven
Features
  • High Precision with Low Total Clearance
  • Low draw Holding pressure Sizing Function
  • Horizontal Cam Driven Transfer Manipulator
  • Integrated High speed Oscillating Feeding Mechanism
  • Standardized Die Set
Contact Now

Product details

Reviews

Additional Features

High-efficiency Production Line for New-energy Housing Pre-cupping

Double-action Blanking & Drawing Press (Cupping Press)

Cupping productivity reaches 1000-1500 parts per minute.


Application Fields

New Energy Battery Can,Metal Can Packaging Forming Solution.


Parameter table

Top - drive Cam Deep Drawing Press
Items Unit **-30 **-45 **-45W **-60 **-80 **-160
Application   AAA   AA 18650 AAA/AA（2-out-of-one） 18650 18650/2170 4680/4695/46100
Capacity kN 300 450 450 600 800 1600
1st-station Capacity kN 15 20 pre-cupping 30 40 150
Slide stroke mm 130 180 130 180 180 280
Slide Dwell Angle deg 10 15 10 20 30 20
Shut Height mm 362 470 470 510 550 780
Bolster Length mm 1070 1150 1330 1430 1800 2520
Main Motor kW 11(4p) 15(4P) 15(4P) 18(4P) 22(4P) 45(4P)
Stamping Speed SPM 50-200 60-170 50-200 40-150 40-120 20-60
Dimension(H*W*T) mm 2950×2700×1675 3380×2870×1780 3250×3110×1650 3650×3230×1710 3620×3240×2100 4200×4700×2500
Weight ton 10 13 15 17 25 48
Max. Deep Drawing Height mm 57 72 57 77 77 110
Max.Material Width mm 100 150 / 168 168 230
Max. Feeding Length mm 76 82 / 102 102 121
Qty of stations   12    14 12 18 12 14 15
Station Pitch mm 63.5 63.5 77 63.5 90 90 140
Max.Blanking Diameter mm Ø57 Ø68 / Ø88 Ø88 Ø142
Under-drive Cam Deep Drawing Press
Items Unit
Application   18650/2170(4-out-of-one 18650/2170(4-out-of-one 4680/4695/46100(2-out-of-one) 4680/4695/46100(4-out-of-one)
Capacity kN 1600 2000 4000
1ststation Capacity kN pre-cupping 100 pre-cupping 200 pre-cupping
Slide stroke mm 180 180 280 280
Slide Dwell Angle deg 20 20 20 20 20
Shut Height mm 550 550 770 770
Bolster Length mm 2050 2800 2060 2700 3000
Main Motor kW 160×2 160×2 160×2 160×4
Stamping Speed SPM 40-120 40-100 20-60 20-50 20-50
Max. Deep Drawing Height mm 77 77 110 110 110
Max.Material Width mm / 180 / 280 /
Max. Feeding Length mm / 70 / 76 /
Qty of stations   2×2×10 2×2×14 2×12 2×14 2×2×10
Station Pitch mm 83 83 130 140 130
Max.Blanking Diameter mm / Ø88 / Ø140 /
