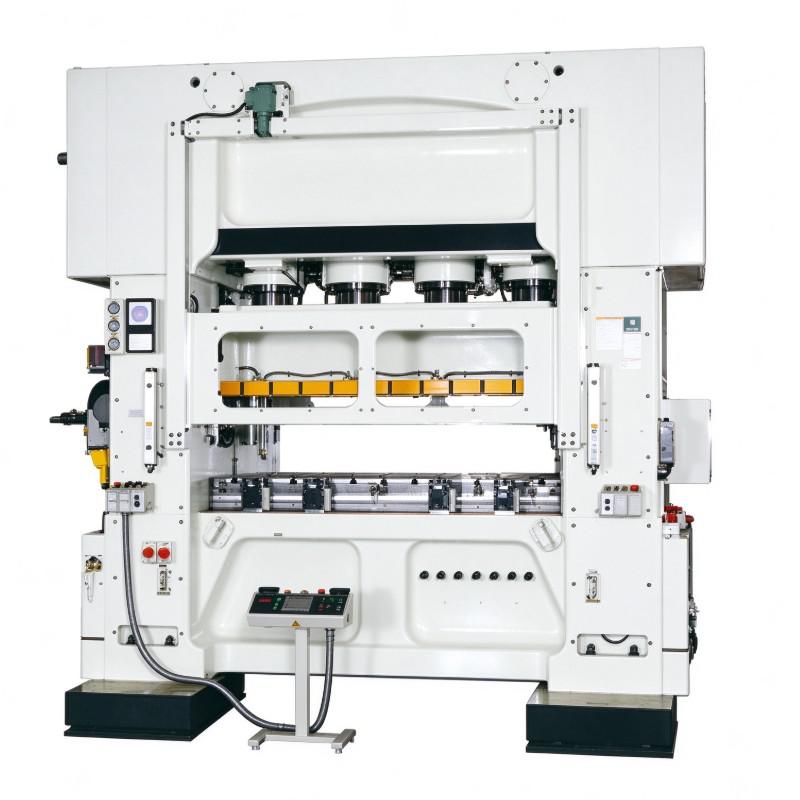

Wide mesa ultra precision High - speed Precision Press
- Four-column top cylinder structure
- Dual drive
- Slide multi-point force
- High rigidity cast pre-stressed frame
- Multiple aging treatment
- Low inertia high-response brake
- Precision bearings
- Thermostatic lubrication & cooling system
- Straight column + octagonal prism precision guide
Product details
Reviews
Additional Features
High speed
Lightweight & fully dynamic balance design.
Stable operation under load at 300–400 SPM.
High rigidity
High-strength casting bed, rigidity of 1/15000–1/20000 .
Deflection of multi-point force slide is 1/2 that of two-point slide.
High precision
Static accuracy: 1/2 of JIS special grade tolerance.
Bottom dead center dynamic accuracy: Ultra-precision grade per GB/T 29548.
Full range of specifications
Covers complete series from 200 to 500 tons, with multiple worktable sizes. It meets high-speed precision stamping requirements for thinner materials, higher precision and faster speed driven by high-efficiency motors.
Large worktable
Maximum worktable size: 3.7 m. Larger tonnage, keeping pace with global standards to meet the development demands of new energy vehicles.
Applicable Materials & Processes
Suitable for high-hardness materials of 0.2–0.35 mm, micron-level die clearance, and high-speed precision stamping production of wide-platform self-stacking riveting iron core progressive dies.
Application Fields
High-speed precision automatic stamping for self-clinching stacked iron cores used in high-efficiency industrial motors, new-energy vehicle motors,compressor motors and other applications.
