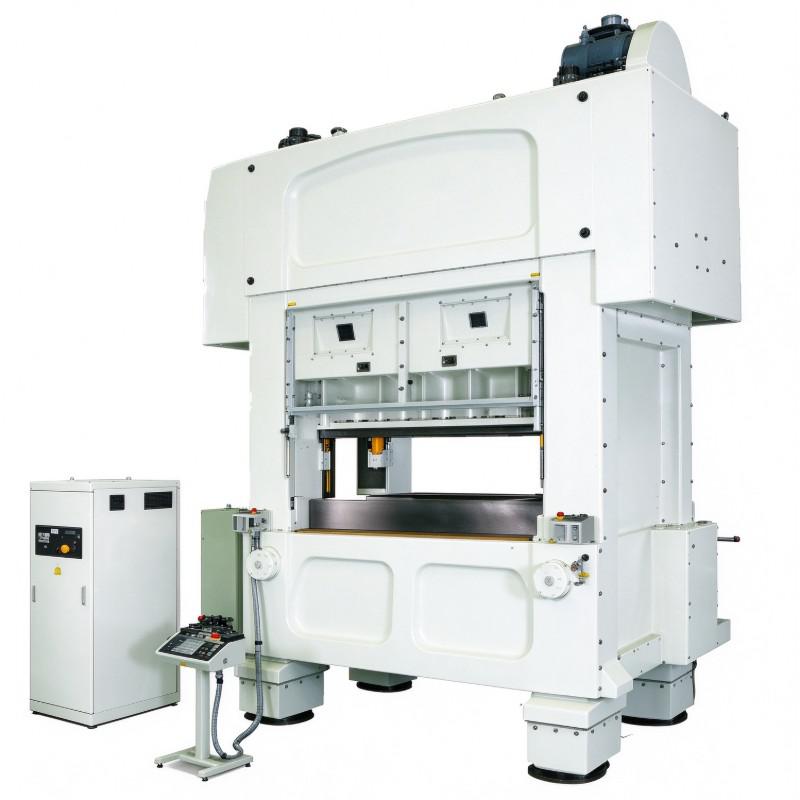

Motor Core High Speed Press
Motor Core High Speed Press

Motor Core High Speed Press

High Lifting Capacity And Fast Lifting Speed
4 Capacity Options(2000-8000kN)
Features
  • High lifting capacity and fast lifting speed.
  • Top mounted cylinder with overload protection and mold release functions.
  • Low inertia enables rapid braking and low speed mold adjustment.
  • Simplified force transmission mechanism achieves reduced overall clearance.
  • Unique circulating lubrication and cooling system.
Contact Now

Specification

Dimensions

Reviews

Application Fields

High-speed precision automatic stamping for self-clinching stacked iron cores used in high-efficiency industrial motors,new-energy vehile motors,compressor motors and other applications.

Parameter table


Items Unit ***200-190 ***300-220 ***630-310 ***800-370
Nominal Force kN 2000 3000 6300 8000
Nominal Force Point mm 1.6 1.6 1.6 1.6
Slide Stroke mm 30 30 40 40
Stroke Per Minute SPM 150~350 150~350 80~200 80~150
Die Height mm 380~480 420~520 450~550 500~600
Lifting Stroke At Minimum Die Height mm 150 150 150 150
Front Die-opening Width mm 1950 2250 3400 3800
Slide Dimensions(LR×FB) mm 1900×760 2200×800 3100×1200 3700×1300
Bolster Plate Dimensions(LR×FB) mm 1900×1000 2200×1000 3100×1300 3700×1400
Blank-hole Dimensions(LR×FB) mm 1600×300 1900×400 2700×580 3200×650
Main Motor Power kW 30 37 2×37 2×55
Total Power kW 40 50 90 130
Accuracy（JIS B6402）   Special Grade Special Grade Special Grade Special Grade
