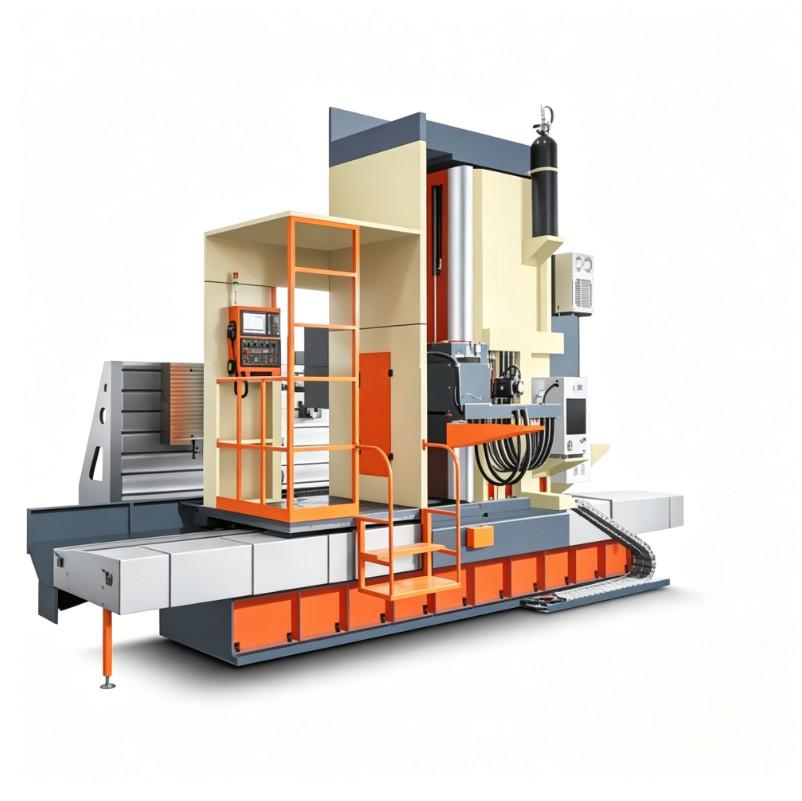

Heavy - duty CNC Horizontal Machining Center TM - 2818 - NC

The machine tool adopts a single-column moving-column horizontal layout. The column is mounted on the base slide carriage, which carries the column for longitudinal travel along the base (X-axis). The cross slide carries the spindle headstock (ram) for vertical up and down movement along the column (Y-axis). The spindle headstock (ram) moves horizontally along the cross slide (Z-axis). The worktable is fixed to the ground and stationary. The vertical worktable (backrest support platform) is vertically installed on the worktable and travels horizontally along it (W-axis).

The spindle adopts Taiwan,China -brand model BT50-220. It is equipped with precision P4 grade bearings dedicated for machine tool spindles. The enlarged spindle shaft delivers high rigidity, large torque, stable operation and superior accuracy.

The three axes are driven by servo motors through precision planetary reducers to rotate the ball screws.Large-diameter ground double-nut ball screws made in Taiwan are adopted, featuring compact structure, smooth movement and high accuracy.

The hydraulic system mainly covers automatic spindle tool clamping/unclamping and vertical worktable movement. With integrated installation, the system ensures reliable machine operation and facilitates maintenance and servicing.

Widely used for semi-finishing and roughing in mold making and general machinery industries.

· Power supply: AC 380V±10%

· Total power capacity: 68KVA

· Power frequency: 50Hz±1%, 3-phase

 · Good earthing is required.

  Independent earthing for each machine is recommended, with copper conductors for earthing connections.

       ·Air supply: 6 kg/cm², properly dried.

· Relative humidity: ≤75%

· Ambient temperature: 5℃ – 40℃

· Temperature change rate: ≤1.1℃/min

· Air atmosphere: Free of corrosive media

· Protect the machine tool from direct sunlight.

· Sufficient lighting and good ventilation.

· Keep away from vibration sources, heat sources and heat flow.
