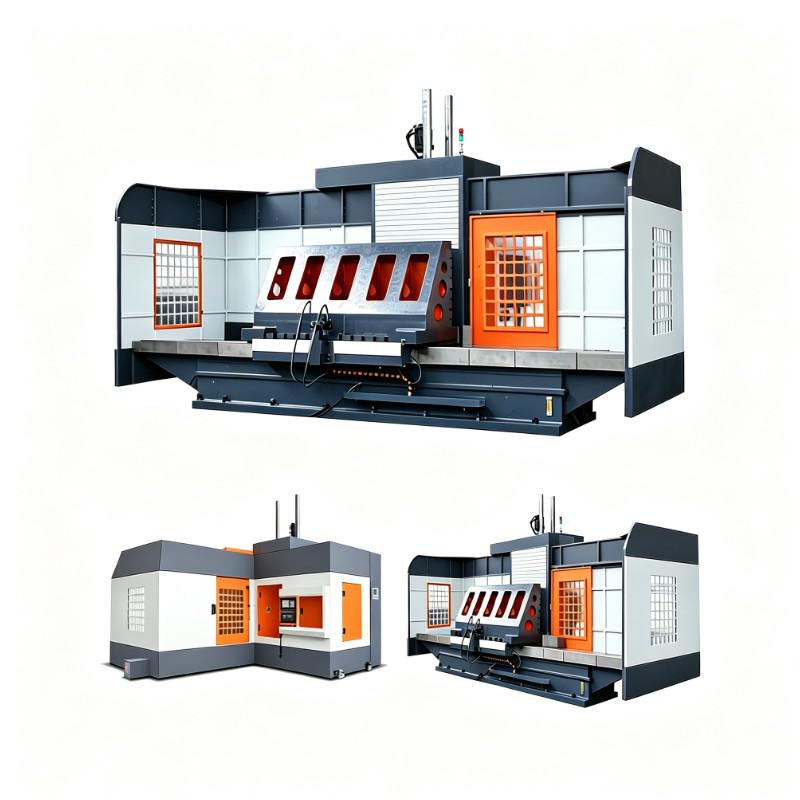

Heavy - duty CNC Horizontal Milling Machine LM - 3016 - K
- Powerful cutting performance and high machining efficiency, effectively reducing manufacturing costs.
- Reliable machine operation and facilitates maintenance and servicing.
- The spindle adopts Taiwan China brand model BT50-190, with enlarged shaft diameter. It features high rigidity, large torque, stable operation and high precision.
Product details
Reviews
Additional Features.
Layout & Structure: The machine tool adopts a single-column horizontal layout. The table performs longitudinal travel along the base bed (X-axis). The column is mounted on the side of the base bed. The cross ram carries the spindle headstock for vertical up and down movement along the column (Y-axis). The headstock moves horizontally along the cross ram (Z-axis). A triangular fixture frame is vertically installed on the worktable and travels horizontally together with the table (W-axis).
The guideways adopt hard sliding guideway design, featuring high rigidity and stable heavy-cutting performance. (Heavy-duty roller linear guideways are also available for X-axis as an option.)
The three-axis drive adopts large-diameter ground double-nut ball screws made in Taiwan China, featuring compact structure, smooth movement and high precision. The screw supports use NSK bearings (Japan). Both ends are pre-tensioned to eliminate precision loss caused by thermal elongation, forming a stable and high-rigidity mechanical transmission system.
Application Fields.
Widely used for semi-finishing and roughing in mold making and general machinery industries.
With a single workpiece setup, it can continuously perform high-precision and high-efficiency machining operations including milling of planes, steps, grooves, complex profiles and cavities, as well as drilling, boring and tapping of various holes.
