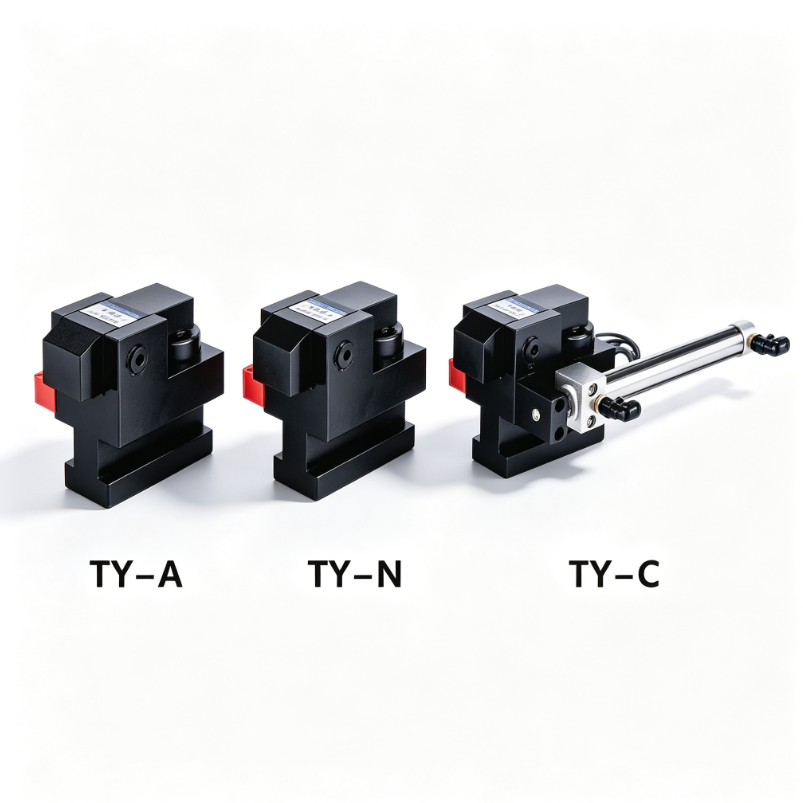

TY Type Die Clamp
TY Type Die Clamp

TY Type Die Clamp

Capacity of clamp:1-50(tons)
Feature

  • Capacity of clamp:1-50(tons)

  • Clamps die edge via lever principle: no U-groove needed, offering broader applicability.





Contact Now

Description

Reviews

Model Selection

Model Unit TY-1 TY-2 TY-4 TY-6 TY-10 TY-16 TY-25
Clamping Force at 250 kgs/cm² tons 1 2 4 6.3 10 16 25
Full Stroke(X) mm 6 7 7 8 8 8 8
Clamping Stroke(Y) mm 3 2 3 3 3 3 3
Extra Stroke(Z) mm 3 5 4 5 5 5 5
Cylinder Capacity of Full Stroke CC 2 6.5 13.2 22.3 37 61 93

Parameter Table

Model MIN.E F G J K L MAX.N P R MIN.S PT MIN.C T slot size reference(mm)
                          A B C D
TY-1 49.5 46 20 15 58 73 10 10 19 16.5 1/8 7 22 37 16 24
TY-2 59 65 28 22 85 107 10 12.5 48 27 1/8 9.5 22 37 16 24
TY-4 85 87 40 30 120 150 10 16 58 33 1/4 12 22 37 16 24
TY-6 94 97 44 34.5 133 167.5 11 20 68 40 1/4 14 28 48 20 28
TY-10 105 110 50 30 165 195 11 20 82 53 1/4 16.5 28 48 20 28
TY-16 120 130 60 35 200 235 12 20 96 67 1/4 19 28 48 23 28
TY-25 133 152 73 35 240 275 13 20 110 81 1/4 22 36 56 25 28
