Products Press Machine
Servo Press
Straight Side Single Point Servo Press
Straight Side Single Point Servo Press

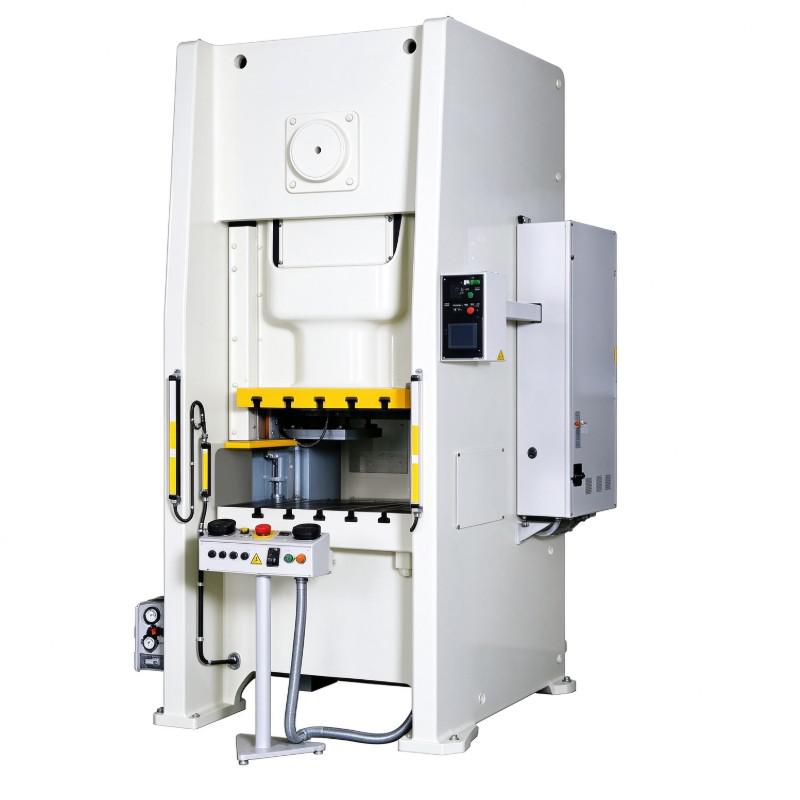

Straight Side Single Point Servo Press

Repeat Accuracy ±0.01mm | 6 Capacity Options (800-3000kN)
Features
  • High-Precision Closed-loop Control (±0.01mm)
  • Automatic Bottom Dead Center Correction (±0.01mm)
  • 9 Preset Motion Curves + Programmable Motion Modes
  • Constant-speed, Pendulum & Custom Motion Patterns
  • Geometric Accuracy JISB6402 I Level
  • Heavy-duty Servo Motor (35-120KW Range)



Download Contact Now

Description

Reviews

High-Precision Servo Press for Precision Forming and Custom Stamping Solutions

Additional Features

Low-speed High Torque Servo-Motor
Energy Management System
Manual Step Die Adjustment
Mechanical Safety Brake
Automatic Circulating Oil Lubrication System

Safety Features

Overload Protection Device
Front Safety Light Curtain
Side Mechanical Barrier

Parameter table

Model Unit ***-80 ***-110 ***-160 ***-200 ***-250 ***-300
Rated Capacity kN 800 1100 1600 2000 2500 3000
Slide Stroke Full Stroke mm 160 180 200 220 250 400
  Forward and Reverse Rotation   60/100/130 70/110/160 80/120/160 110/160/200 120/180/240 180/240/300
Continuous Stroke Rate Full Stroke SPM ~80 ~70 ~60 ~50 ~45 ~35
  Forward and Reverse Rotation SPM 118/96/82 114/93/76 100/82/68 81/67/57 65/55/45 52/45/38
Shut Height mm 320 320 350 400 450 540
Slide Adjustment(LR×FB) mm 80 90 100 100 110 120
Slide Dimensions(LR×FB) mm 540×460 630×520 900×580 1000×650 1150×80 1300×900
Bolster Dimensions(LR×FB) mm 900×600 1000×680 1150×760 1250×840 1500×1000 1700×1200
Main Motor(AC servo)
kW 		35 40 40 65 100 120
Power Supply Capacity KVA 16 16 22 32 37 45

Structural Diagram


Working Curve
